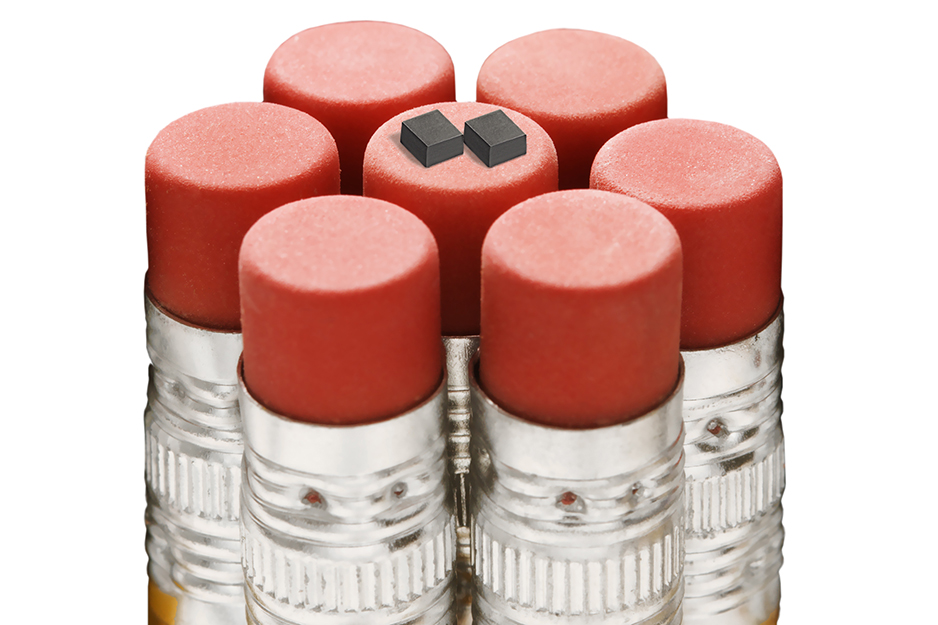

Cary, IL, USA - Coilcraft’s XPL2010 Series of ultra-small, magnetically shielded power inductors combine excellent current handling, low DC resistance and inductance values up to 220 µH in a package that measures just 1.9 X 2.0 mm.
The XPL2010 Series offers DCR as low as 0.027 Ohms and current ratings up to 3.75 Amps. They are available with 22 inductance values ranging from 0.20 to 220 µH, and their soft saturation characteristics make them ideal for point-of-load (POL) dc-dc converter applications. They are also AEC-Q200 Grade 1 (-40°C to +125°C) qualified for use in harsh automotive environments.
XPL2010 Series power inductors feature RoHS compliant silver-copper (96.5/3/0.5) over tin over nickel over silver-platinum terminations and offer a maximum reflow temperature of 260°C. COTS Plus tin-lead terminations are also available.
As with all Coilcraft parts, free evaluation samples and complete technical specifications for the XPL2010 are available online at www.coilcraft.com/xpl2010.cfm. Coilcraft also offers a Designer’s Kit (C428) that contains five samples of all 22 values of the XPL2010.
For more information, contact Len Crane, +1-847-639-6400, firstname.lastname@example.org.
Headquartered outside of Chicago in Cary, Illinois, Coilcraft is a leading global supplier of magnetic components including high performance RF chip inductors, power magnetics and filters. In addition to a large selection of standard components, Coilcraft also designs and builds custom magnetics to fit a customer’s exact electrical requirements.
Engineers and buyers consider Coilcraft a preferred supplier because of its reputation for quality, reliable delivery, engineering support and the superior performance of our products. In independent surveys, engineers consistently rank Coilcraft the number one magnetics company they would recommend to a friend.
